Description
NEW! Force Sensing Resistor “FSR” sensors (4 per panel) with improved automatic calibration for always “perfect” sensitivity and minimal hardware maintenance
Sensitivity customization via software. ( 20 FSR sensors included)
NEW! Adjustable Panel sizes: Support for square or rectangular panels. (rectangular panel kits sold separately)
NEW! Intelligent LED Matrix lighting per panel
Automatic lighting with “step on” support and assignable colors
NEW! RGB LED motion decal customization via software
NEW! RGB LED floor lighting with color customization via software
NEW! (5) 12mm scratch resistant Super Acrylic Universal Directional Panels
NEW! (4) 16mm scratch resistant Super Acrylic Corner Pass-Through Panels.
NEW! Plug N’ Play External USB C Interface
(Internal MCU uses USB Micro Connection)
5 panel input (Left, Up, Center, Down, Right):
Interchangeable panel positions for X or + Configurations
(upgradable to 9 panel input via kit sold separately)
(2) Stainless Steel Panels included for use with center position for authentic 4 panel “feel”
(2) Removable stainless steel support bars with improved width/length/thickness.
(2) Support link V brackets included for linking stages.
(double configuration)
Vibration resistant / shock absorbing panels.
Built in leveler/locking anti-vibration support wheels with improved additional locking wing screw.
Can be used on Carpet/Hardwood/Concrete/Linoleum and a wide variety of flooring.
User serviceable
Modular design allows for compact storage, transporting and easy replacement.
Software configuration tool for diagnostics, adjustable sensitivity and customized lighting control.
One year support and warranty on parts: Does not cover scratches, blemishes, damages caused by inconsiderate use or improper maintenance.
(additional shipping costs excluded)

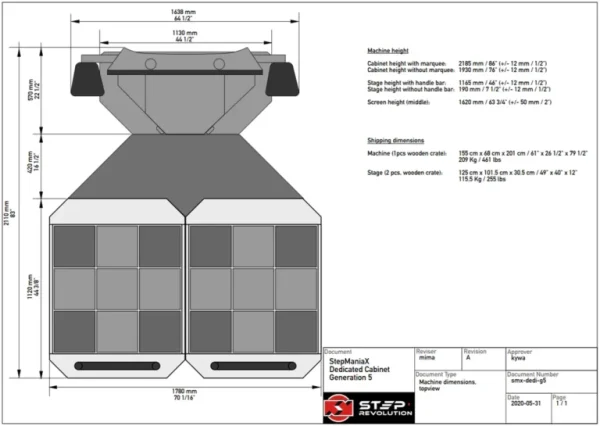

SIZE (OPERATING):
177.8cm (W) x 223.52cm (L) x 213.36cm (H)
70″ (W) x 88″ (L) x 84″ (H)
WEIGHT (When Assembled):
550 LBS
250 KG
SHIPPING DIMENSIONS:
(2) wooden crates “Stages” – 255lbs 49″ x 40″ x 12″
(1) wooden crate “Cabinet” – 461lbs 79.13″ x 61.02″ x 26.77″
